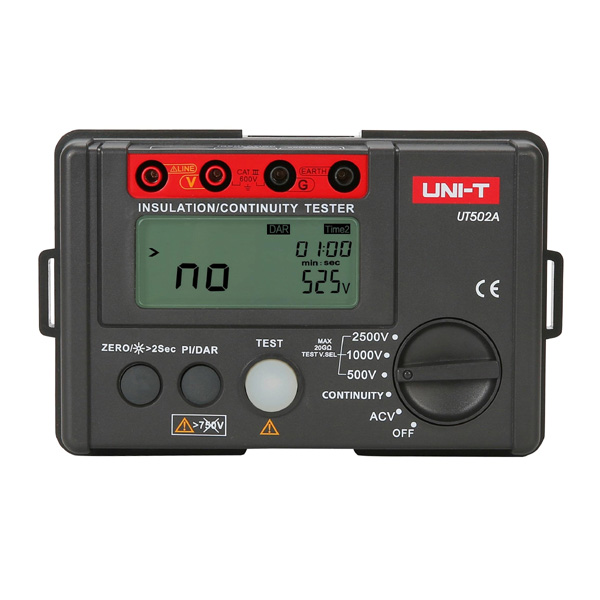

UT502A Megger Insulation Resistance Tester 2500V

https://ram-electronics.odoo.com/web/image/product.template/8406/image_1920?unique=35d3406

UNI-T Brand

4,750.00 EGP 4750.0 EGP 4,750.00 EGP

4,750.00 EGP

Not Available For Sale

This combination does not exist.

1 Year Warranty

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: AVO.UT502A.UNIT

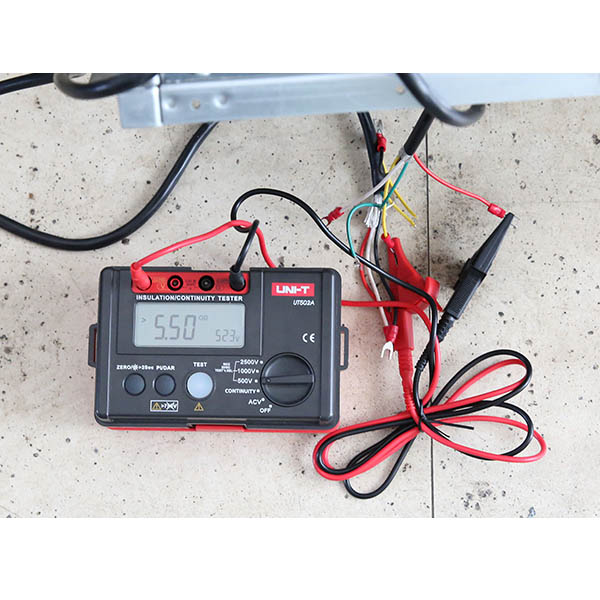

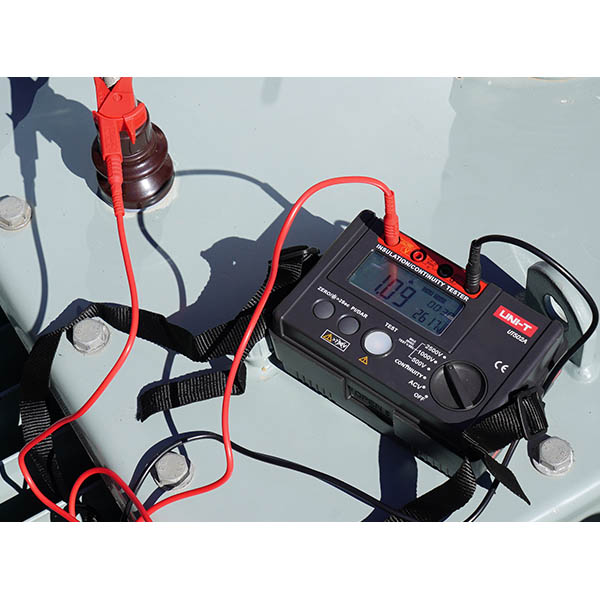

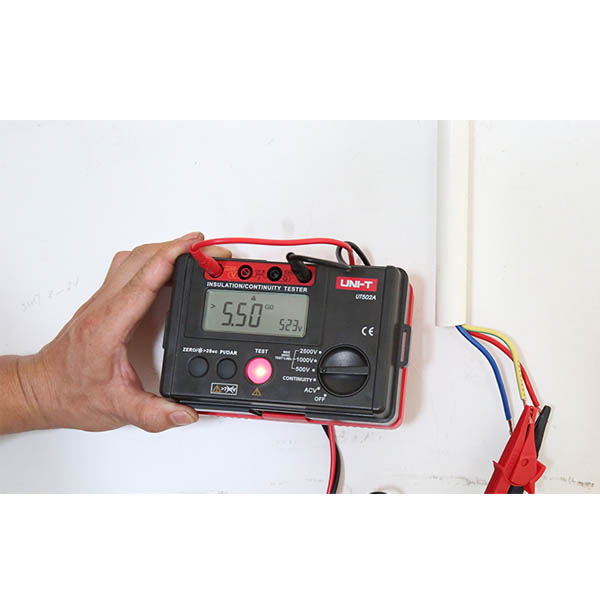

UT500 series insulation testers are used to measure the insulation resistance of electrical equipment and household appliances. This is done by measuring the insulation resistance between electrical circuits or between circuits and ground. UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index), and DAR (Dielectric Absorption). These are ideal tools for ensuring transformers, generators, high-voltage motors, capacitors, cables, arresters, and other electrical equipment that can oprate in a safe and accurate manner.

Features

  • 2000 count LCD display, overload indication, backlight
  • AC voltage measurement, auto power off
  • Auto discharge
  • Continuous low resistance measurement
  • Continuous measurements mode, red warning light and buzzer function
  • PI and DAR measurement, auto resistivity calculation
  • Low resistance returning to zero function to improve accuracy
SpecificationsRange UT501AUT501BUT502A
Insulation resistance (Ω)Test voltages100V/250V/500V/1000V0%~10%
  250V/500V/1000V 0%~10%
  500V/1000V/2500V  0%~10%
 100V0MΩ~100MΩ±(3%+5)
 250V0MΩ~99.9MΩ±(3%+5)±(3%+5)
  100MΩ~5GΩ±(5%+5)±(5%+5)
 500V0MΩ~99.9MΩ±(3%+5)±(3%+5)±(3%+5)
  100MΩ~5GΩ±(5%+5)±(5%+5)±(5%+5)
 1000V0MΩ~99.9MΩ±(3%+5)±(3%+5)±(3%+5)
  100MΩ~5GΩ±(5%+5)±(5%+5)±(5%+5)
 2500V0MΩ~99.9MΩ  ±(3%+5)
  100MΩ~9.9GΩ  ±(5%+5)
  10GΩ~20GΩ  ±(10%+5)
 Load current50V (R=50kΩ) 1mA0%~10%0%~10%0%~10%
  100V (R=100kΩ) 1mA0%~10%0%~10%0%~10%
  250V (R=250kΩ) 1mA0%~10%0%~10%0%~10%
  500V (R=500kΩ) 1mA0%~10%0%~10%0%~10%
  1000V (R=1MΩ) 1mA0%~10%0%~10%0%~10%
  2500V (R=1MΩ) 1mA  0%~10%
Short-circuit current  <2mA<2mA<2mA
Low resistance (Ω)0.01Ω~200Ω (about 5.0V/>200mA)  ±(2%+3)±(2%+3)

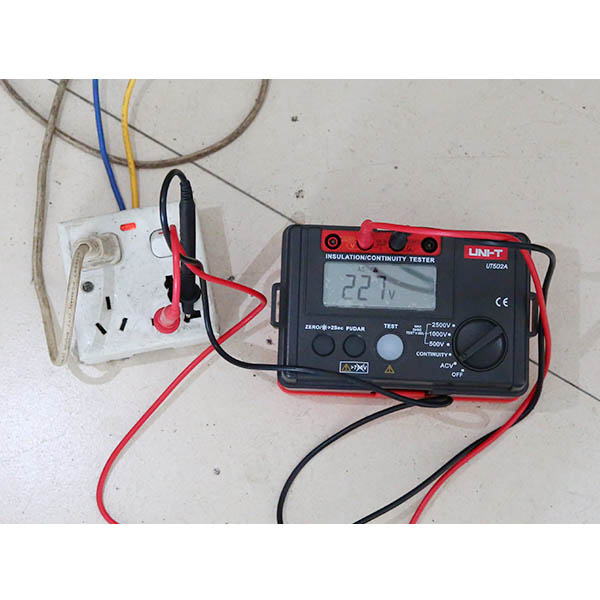

AC voltage (V)30V~750V ±(2%+3)
 30V~600V  ±(2%+3)±(2%+3)
Features
Display count  200020002000
DAR60s/15s and 60s/30s
PI
Auto range/Low battery indication
LCD backlight/Light alarm
Buzzer alarm/High voltage indication
Over load indication/Auto discharge
Test voltage secondary display
10MΩ internal resistance test
Meets IEC 61557
     61557-1:2007; 61557-2:2007; 61557-4:2007 (UT502A only)
General Characteristics
Power1.5V battery (LR6) x 6
Display70.6mm x 34mm
Product ColorRed and grey
Product net weight500g
Product size150mm x 100mm x 71mm

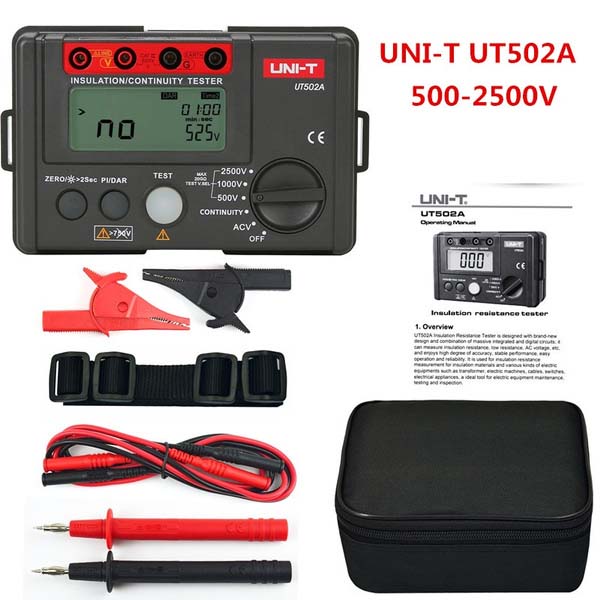

Standard accessories
 Batteries, test leads, alligator clips, gallus  Batteries, test leads, alligator clips, gallusBatteries, test leads, alligator clips, gallus, test probes
Standard individual packing
   Gift box, carrying bag, English manual  Gift box, carrying bag, English manual  Gift box, carrying bag, English manual
