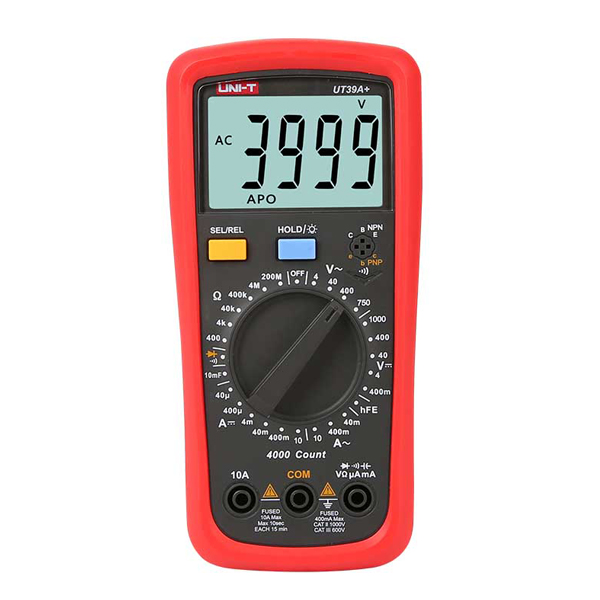

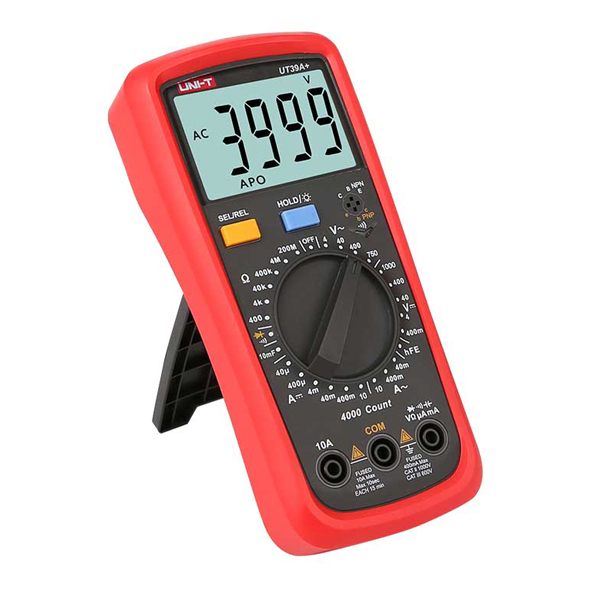

UT39+ series modern digital multimeters are portable devices designed for the electrical industry. They feature overvoltage and overcurrent alarm and high voltage protection, triggered during faulty operation. UT39C+ is suitable for HVACR maintenance with its temperature measurement feature. Designed according to CAT II 1000V/CAT III 600V safety standards.
Features
- 1000V DC voltage measurement
- 750V AC voltage measurement
- 10A DC/AC current measurement
- Resistance/Capacitance
- hFE
- Diode/Continuity test
| Specifications | Range | UT39A+ |
| Category ratings | CAT II 1000V, CAT III 600V | CAT II 1000V, CAT III 600V |
| DC voltage (V) | 400mV/ 4V/ 40V/ 400V/ 1000V | ±(0.5%+5) |
| AC voltage (V) | 4V/ 40V/ 400V/ 750V | ±(0.8% +3) |
| DC current (A) | 40μA/ 400μA/ 4mA/ 40mA/ 400mA/ 10A | ±(0.8% +3) |
| AC current (A) | 40mA/ 400mA/ 10A | ±(1% +2) |
| Resistance (Ω) | 400Ω/ 4000Ω/ 40kΩ/ 400kΩ/ 4MΩ/ 200MΩ | ±(0.8% +2) |
| Capacitance (F) | 10mF | ±(4% +5) |
| Display count | 4000 | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 56.5mm x 36mm | |
| Product net weight | 330g | |
| Product size | 175mm x 83mm x 53mm | |
| Standard accessories | Test leads, temperature probe (UT39C+/E+), English manual | |
| Standard individual packing | Gift box |
