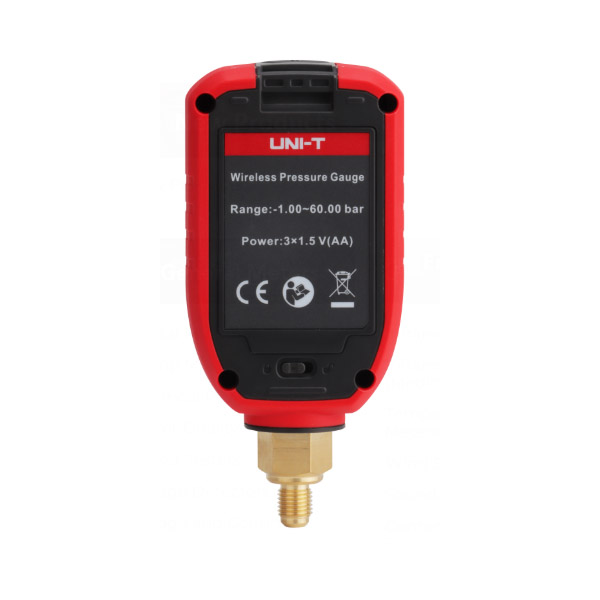

UT336P Wireless Pressure Gauge

UNI-T UT336P Wireless Pressure Gauge

The UNI-T UT336P Wireless Pressure Gauge is a smart and versatile HVAC/R diagnostic tool designed for installation, maintenance, and long-term monitoring of refrigeration, heat pump, and air-conditioning systems. It delivers real-time pressure readings wirelessly to your phone via Bluetooth, supports offline data logging, and when paired with an external temperature clamp (e.g., UT-T19), it enables calculation of superheat and subcooling, making system checks faster and more accurate.

Key Features

• Wireless Bluetooth connectivity with the iENV app for real-time monitoring, data export, PDF/CSV reports, and firmware updates.
• Wide pressure range suitable for HVAC/R systems.
• Offline data logging: Stores up to 8,000 records with configurable intervals.
• High/Low pressure alarms and dual LED indicators (HP/LP) for quick status checking.
• Temperature clamp port: 3.5 mm interface for external temperature probe to measure pipe temperatures and calculate superheat/subcooling.
• Multiple pressure units supported for flexibility (bar, psi, kPa, MPa, etc.).
• Preset refrigerants: 10 built-in, with 94+ available via app.
• IP54 dust and splash resistance for field durability.
• Auto power-off and firmware upgrade via app.

Specifications

• Pressure Measurement Range: –1 to 60 bar (–14.5 to 870.2 psi; –0.100 to 6.000 MPa; –75.0 to 4,500.3 cmHg; –29.52 to 1,771.8 inHg; –1.01 to 61.18 kg/cm²)
• Resolution: 0.01 bar / 0.1 psi / 1 kPa / 0.001 MPa (range-dependent)
• Accuracy: ±0.5 %FS
• Pressure Units: Bar; kg/cm²; cmHg; psi; inHg; kPa; MPa
• Temperature Units: °C / °F
• Refrigerant Support: 10 presets; 94+ selectable via app
• Data Logging: Up to 8,000 records; log interval 1 s–1 h (app configurable)
• LED Indicators: Red (high pressure); Blue (low pressure)
• Bluetooth App: iENV app for smartphones
• Temperature Clamp Port: 3.5 mm for external temperature measurement
• IP Rating: IP54
• Power Supply: 3 × AA alkaline batteries
• Battery Life: ~100 h (backlight off, LED on, 1-min interval)
• Pressure Connector: 1/4″ SAE
• Working Temp & Humidity: –10 °C to +50 °C, < 90 % RH
• Storage Temp & Humidity: –20 °C to +60 °C, < 80 % RH
• Dimensions: 145 × 68 × 39 mm
• Weight: ~250 g (without batteries)

Applications

• Installation and service of HVAC and refrigeration systems
• Heat pump system pressure monitoring
• Automotive air-conditioning diagnostics
• Commercial and residential HVAC/R maintenance
• Pipeline pressure checks
• Long-term system performance tracking

The UNI-T UT336P Wireless Pressure Gauge delivers accurate wireless pressure measurement, robust data logging, and Bluetooth integration for modern HVAC/R diagnostics and monitoring.

Download

• ​PRODUCT PAGE & USER MANUAL​
