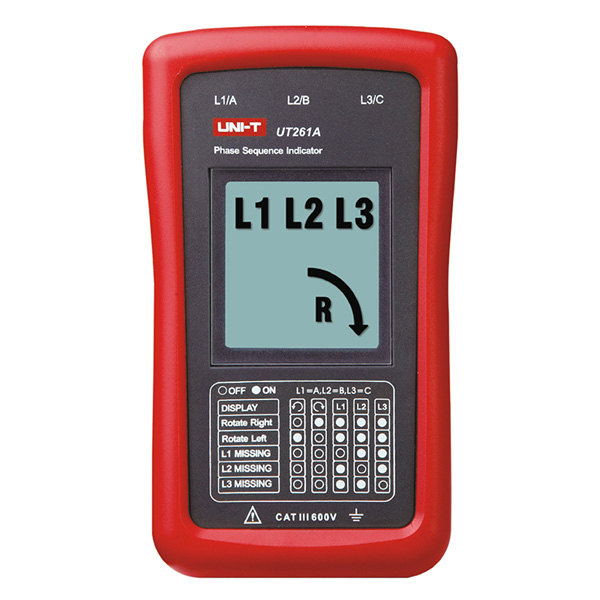

UT261 series is used for determining the 3-phase power phase sequence, missing phase indication. UT261A can measure AC voltage of 40~700V and 90~600V respectively. These devices can operate in frequency range of 15~400Hz. UT261 are durable devices that can withstand impact from 2 meters height. Test leads with protective tubing are included in optional accessories.
| Specifications | Range | UT261A |
| AC voltage (V) | 40V~690V | √ |
| Frequency (Hz) | 15Hz~400Hz | √ |
| Working current (A) | ＜1mA | |
| Features | ||
| Phase sequence indication | LCD | |
| Missing phase indication | LCD | |
| Motor rotation indication | NOT Support | |
| General Characteristics | ||
| Power | UT261A: No battery required; UT261B: 9V battery (6F22) | |
| Product Color | Red and grey | |
| Product net weight | UT261A: 160g; UT261B: 180g | |
| Product size | 123mm x 71mm x 29mm | |
| Standard accessories | Battery (UT261B), test lead with alligator clip x 3 | |
| Standard individual packing | Gift box, English manual, carrying bag |
Download
