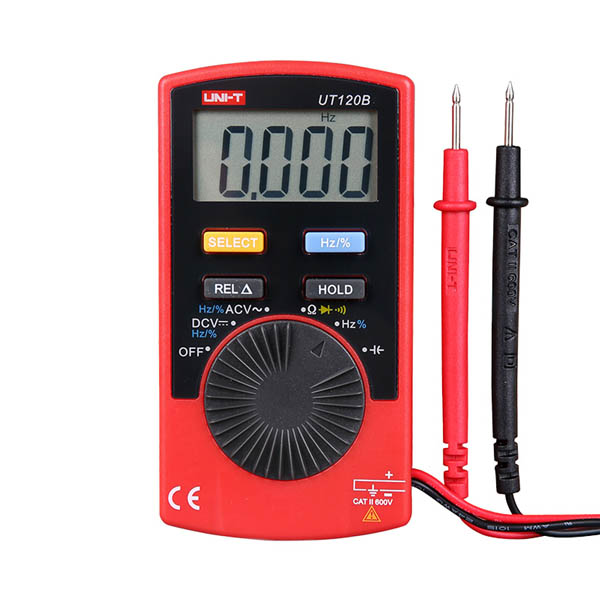

UT120B Pocket Size Digital Multimeter

https://ram-electronics.odoo.com/web/image/product.template/8659/image_1920?unique=35d3406

UNI-T Brand

750.00 EGP 750.0 EGP 750.00 EGP

750.00 EGP

Not Available For Sale

This combination does not exist.

1 Year Warranty

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: AVO.UT120B.UNIT

UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every electronics engineer.

Features

  • Auto power off
  • Auto range
  • 4000 display count
  • Data hold and relative mode
Specifications Range UT120B
DC voltage (V) 600V ±(0.8%+1)
AC voltage (V) 600V ±(1.2%+3)
Resistance (Ω) 40MΩ ±(1%+2)
Capacitance (F) 100μF ±(4%+3)
Frequency (Hz) 10Hz - 100kHz ±(0.5%+3)
Features
Display count   4000
Auto range
Duty cycle 0.1%~99.9%
Diode
Auto power off Around 30 minutes
Continuity buzzer
Low battery indication ≤2.4V
Data hold
Relative mode
Input impedance for DCV Around 10MΩ
General Characteristics
Power 3V battery (CR2032)
Display 43mm x 22mm
Product Color Red and grey
Product net weight 76g
Product size 110mm x 58.2mm x 10.8mm

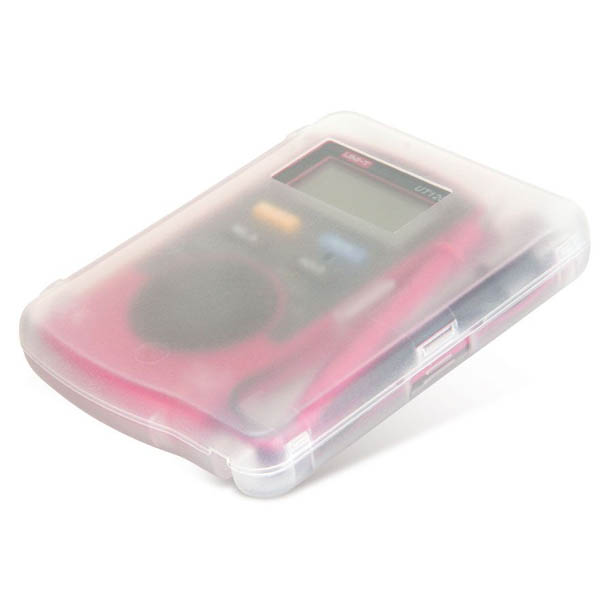

Standard accessories Battery, carrying case
Standard individual packing Blister, English manual
