  2. UPO2204HD UNI-T 4-Channel High-Resolution Digital Oscilloscope 200 MHz (12-bit, 2.5 GSa/s)

UPO2204HD UNI-T 4-Channel High-Resolution Digital Oscilloscope 200 MHz (12-bit, 2.5 GSa/s)

https://www.ram-e-shop.com/web/image/product.template/9699/image_1920?unique=2c39c90

With Serial bus trigger and hardware decoding (UART, RS-232, I²C, SPI, CAN, CAN-FD, LIN, FlexRay, SENT, Audio, etc.)
UNI-T Brand

58,000.00 EGP 58000.0 EGP 58,000.00 EGP

58,000.00 EGP

Not Available For Sale

This combination does not exist.

Contact Us
1 Year Warranty

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: AVO.UPO2204HD.UNIT

UNI-T UPO2204HD High-Resolution Digital Oscilloscope (200 MHz, 4 Channels, 12-bit)

The UNI-T UPO2204HD is a professional high-resolution digital phosphor oscilloscope featuring 200 MHz bandwidth, 4 analog channels, and a true 12-bit ADC.

Built on UNI-T’s latest Ultra Phosphor™ 3.0 technology, it delivers exceptional waveform fidelity, ultra-low noise performance, and extremely fast waveform capture—ideal for power electronics, semiconductor testing, automotive electronics, medical electronics, and advanced R&D applications.

With its 10.1-inch HD capacitive touchscreen, deep memory, and six-in-one instrument integration, the UPO2204HD provides engineers with powerful analysis capabilities in a modern, intuitive platform.

Key Features
  • 200 MHz analog bandwidth
  • 4 analog input channels + EXT trigger
  • True 12-bit vertical resolution (up to 16-bit with ERES)
  • Real-time sampling rate up to 2.5 GSa/s
  • Ultra-deep memory: up to 100 Mpts
  • Ultra-fast waveform capture:
    • 250,000 wfms/s (normal)
    • 1,000,000 wfms/s (sequence mode)
  • Ultra Phosphor™ 3.0 display with 256-level gray scale
  • 10.1-inch HD capacitive multi-touch screen (1280 × 800)
  • Six-in-one integrated instrument:
    Oscilloscope, Spectrum Analyzer, Digital Voltmeter, Frequency Counter, Protocol Analyzer, Power Analyzer (option)
  • Advanced zone trigger and hardware-accelerated template testing
  • Full-memory hardware protocol decoding

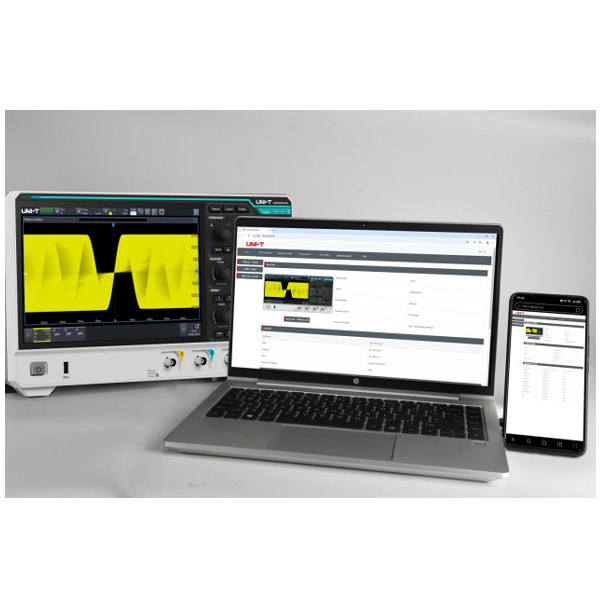

  • Web-based remote control & SCPI support
Core Technical Specifications – UPO2204HD
Analog Performance
  • Bandwidth (-3 dB): 200 MHz
  • Channels: 4
  • Rise time (typical): ≤ 1.8 ns
  • Sampling rate:
    • 2.5 GSa/s (single channel)
    • 1.25 GSa/s (two channels)
    • 625 MSa/s (four channels)
  • Vertical resolution: 12-bit
  • Vertical scale: 500 µV/div to 10 V/div (1 MΩ)
  • Input impedance:
    • 1 MΩ ± 2 % || 17 pF ± 2 pF
    • 50 Ω ± 1.5 %
  • Maximum input voltage:
    • 1 MΩ: 400 V (DC + AC peak), 135 Vrms
    • 50 Ω: 5 Vrms
Acquisition & Memory
  • Memory depth: Auto / 25 kpts / 250 kpts / 500 kpts / 5 Mpts / 50 Mpts / 100 Mpts
  • Waveform recording: up to 125,000 frames
  • Dead time: < 1 µs (typical)
Display & User Interface
  • Screen: 10.1-inch capacitive multi-touch
  • Resolution: 1280 × 800
  • Color depth: 24-bit
  • Persistence: 50 ms to Infinite
  • Multi-window display
  • Touch, gesture, knob, mouse, and keyboard support
Trigger System
  • Trigger modes: Auto / Normal / Single
  • Advanced triggers:
    Edge, Pulse Width, Runt, Window, Nth Edge, Delay, Timeout, Duration, Setup & Hold, Slope, Video, Pattern
  • Zone trigger: Dual-zone (Must-Intersect / Must-Not-Intersect)
  • Serial bus triggering & decoding (standard):
    RS-232/UART, I²C, SPI, CAN, CAN-FD, LIN, FlexRay, AUDIO, SENT
Measurement & Analysis
  • Automatic measurements: 56 parameters
  • Simultaneous display: up to 27 parameters
  • Measurement statistics: Min, Max, Mean, Std-Dev, Trend & Histogram
  • Math functions: +, −, ×, ÷, FFT, digital filters
  • FFT: up to 4 M-point, spectrum & waterfall display
  • Digital Voltmeter: DC / AC RMS / AC + DC RMS
  • Frequency counter: 7-digit hardware counter
  • Power analysis (optional): ripple, harmonics, switching loss, SOA, efficiency, transient response
Connectivity & Interfaces
  • USB 3.0 Host (front & rear)
  • USB 3.0 Device
  • LAN (VXI-11)
  • HDMI output
  • AUX Out (Trigger / Pass-Fail)
  • 10 MHz reference input & output
  • Built-in WebServer
  • SCPI remote programming
  • PC/Mobile phone access
General Specifications
  • Power supply: 100–240 VAC, 50/60 Hz
  • Power consumption: ≤ 120 W
  • Operating temperature: 0 °C to +40 °C
  • Dimensions (W × H × D): 361 × 209 × 106 mm
  • Weight: 2.92 kg
  • Calibration interval: 1 year
  • Certifications: CE, UKCA, IEC 61326-1
Standard Accessories
  • Power cable
  • USB 3.0 cable (UT-D30)
  • 4 × Passive probes (200 MHz)
  • User documentation
Typical Applications
  • Power electronics & SMPS testing
  • Semiconductor & low-noise signal analysis
  • Automotive electronics & CAN/CAN-FD analysis
  • Medical & industrial electronics
  • Advanced R&D laboratories
  • University & research institutions
Summary

The UNI-T UPO2204HD delivers true 12-bit resolution, deep memory, ultra-fast capture, and advanced analysis tools in a modern touchscreen platform—making it an excellent choice for engineers who demand high signal fidelity and professional-grade performance.
