LM320E Digital Angle Meter
UNI-T Brand
Internal Reference:
AVO.LM320E.UNIT

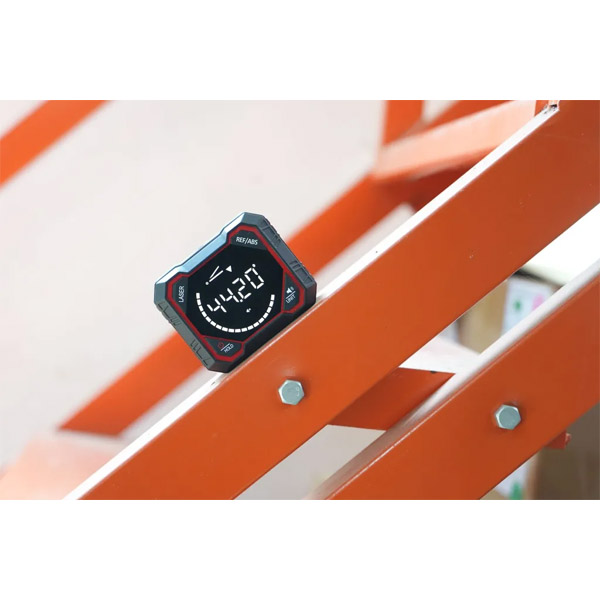

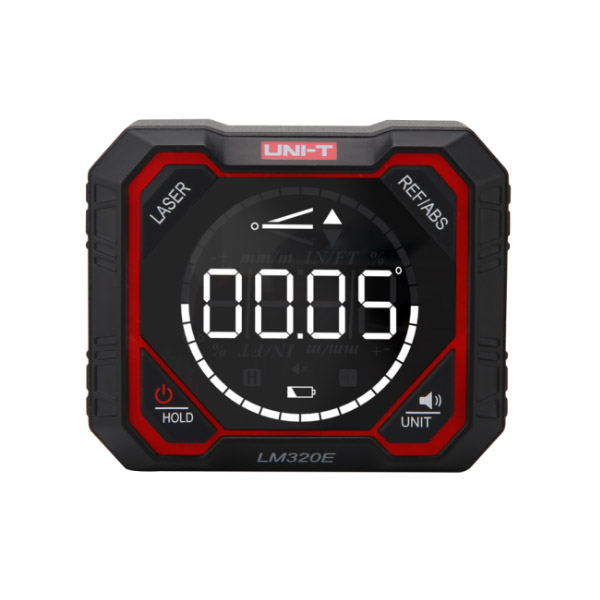

UNI-T LM320E Digital Angle Meter
The UNI-T LM320E Digital Angle Meter is a compact, high-precision tool designed for professional and DIY angle measurement tasks. It is ideal for construction, mechanical installation, woodworking, metal fabrication, and general alignment applications. With a durable aluminum body, strong magnetic base, and dual laser guidance, the LM320E delivers fast, accurate, and reliable results in the field.
Key Features
- High-accuracy digital angle measurement
- Dual laser lines for precise alignment and positioning
- Strong dual-side magnetic base for hands-free operation
- Color display with automatic screen rotation
- Absolute and relative measurement modes
- Rechargeable lithium battery with USB-C charging
- Compact, lightweight, and durable design
Specifications
- Measurement Range: 4 × 90° (360° total)
- Accuracy: ±0.2°
- Resolution: 0.05°
- Measurement Units: Degrees (°), Percentage (%), mm/m, in/ft
- Measurement Modes: Absolute / Relative
- Laser Accuracy: ±3 mm at 5 m
- Display: Color LCD with auto-rotation
- Magnetic Base: Bottom and rear magnets
- Battery: Built-in rechargeable lithium battery (~1000 mAh)
- Charging Port: USB Type-C
- Operating Time: Up to 8 hours continuous use
- Housing Material: Aluminum alloy + ABS
- Weight: Approx. 180 g
Applications
- Construction and structural alignment
- Machinery and equipment installation
- Woodworking and carpentry
- Metalworking and fabrication
- DIY and home improvement projects
The UNI-T LM320E offers precision, durability, and ease of use in one portable angle measurement solution, making it a reliable choice for professionals and serious hobbyists alike.
