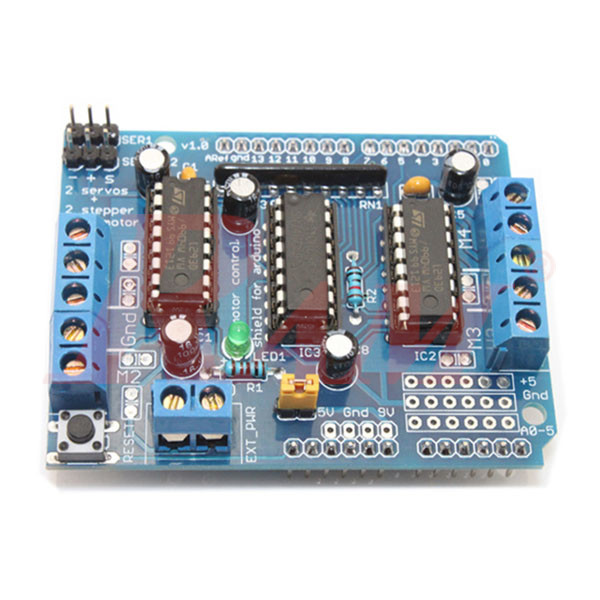

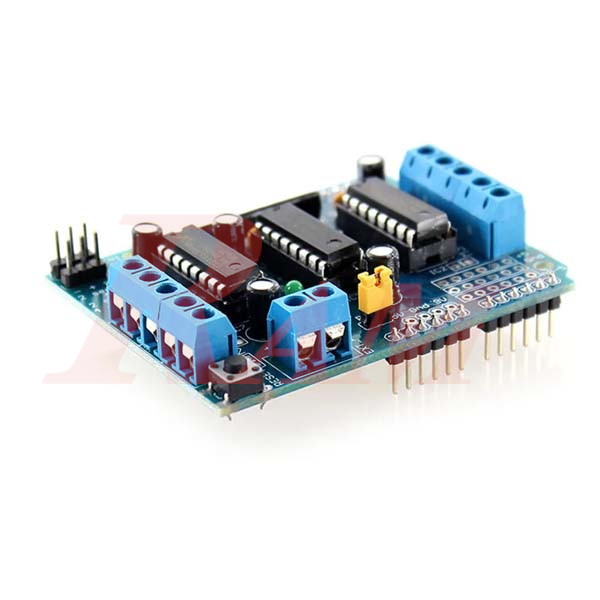

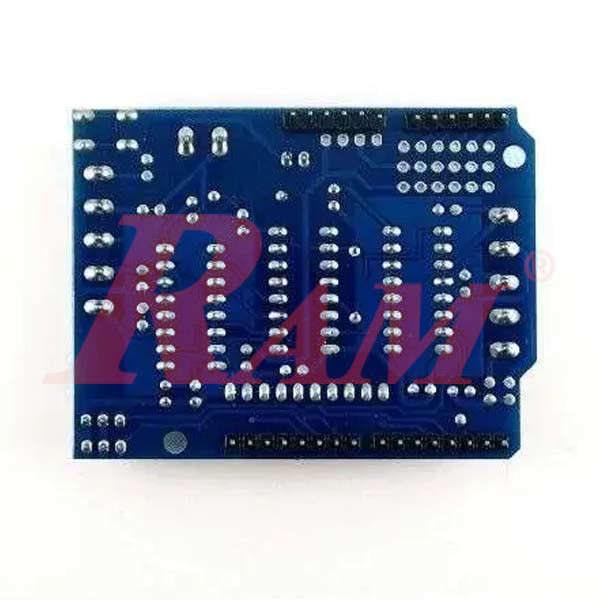

Arduino Shield - L293D Motor Driver Shield

For DC/Stepper/Servo Motor

100.00 EGP 100.0 EGP 100.00 EGP

100.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: ARDUINO.SH.L293D


Arduino is a great starting point for electronics, and with a motor shield, it can also be a nice tidy platform for robotics and mechatronics. Here is a design for a full-featured motor shield that will be able to power many simple to medium-complexity projects.


  • 2 connections for 5V servos connected to the Arduino's high-resolution dedicated timer - no jitter!
  • Compatible with Arduino Mega2560 & Arduino UNO.
  • Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution).
  • Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, interleaved, or micro-stepping.
  • 4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, 4.5V to12V.
  • Pull-down resistors keep motors disabled during power-up.
  • Big terminal block connectors to easily hook up wires (10-22AWG) and power.
  • Arduino reset button brought up top.
  • 2-pin terminal block to connect external power, for separate logic/motor supplies.


  • Power supply: 4,5V to 16 V
  • Driver: 2 x L293D
  • Maximum current per channel: 600 mA
  • The shift register 74HC595
  • The number of supported motors:
  • 4 DC motors
  • 2 stepper motors
  • 2 servo connectors
  • The reset button
  • Size: 7cm x 5.4cm x 2cm
