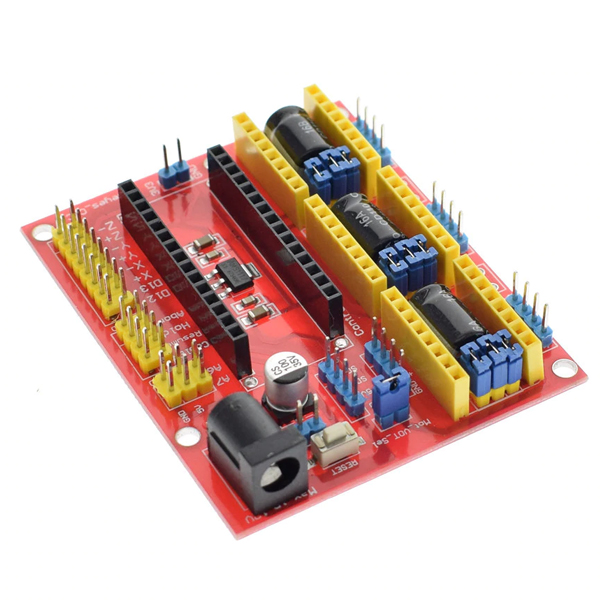

Arduino Shield - Nano CNC Machine V4 Board

https://www.ram-e-shop.com/web/image/product.template/7592/image_1920?unique=9b97f50

125.00 EGP 125.0 EGP 125.00 EGP

125.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: ARDUINO.SH.CNC.NANO

This board is widely used for driver expansion board of engraving machines. There are a total 3 3-way slots for stepper motor driver modules (Model A4988 or Drv8825 - It sold separately at our store), and it can drive 3-way stepper motors each up to 2A. Each way stepper motor has two I/O ports and it means 6 I/O ports can manage 3 stepper motors. It is very convenient to operate.

SPECIFICATION

  • Worked with Aduino Nano
  • 3 axis stepper motor driver
  • Compatible with micro-drive laser engraving machine, three-axis CNC engraving machine,.
  • 2A can be controlled within the two-phase four-wire stepper motor.
  • Released the digital IO interface, easy to connect to other modules, such as ENDSTOP.
  • Released the I2C interface, you can connect to the LCD I2C or other I2C module.
  • Power DC5V interface, 7.5-12V voltage input.
  • GRBL compatible
