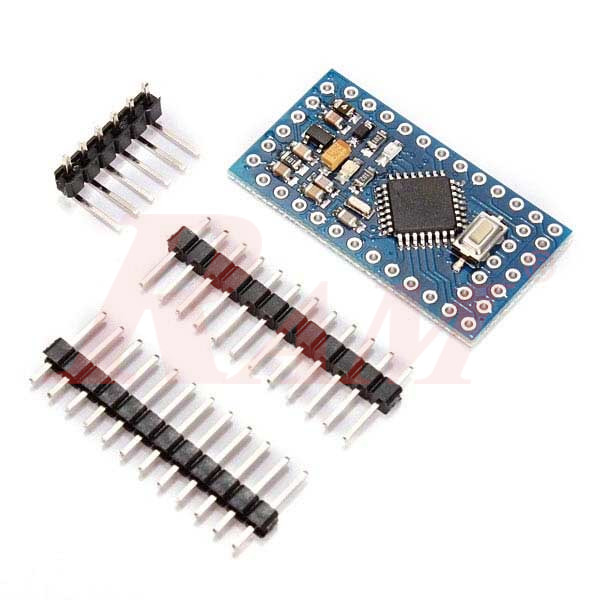

Arduino Pro Mini 328 5V/16MHz

https://www.ram-e-shop.com/web/image/product.template/7180/image_1920?unique=9b97f50

375.00 EGP 375.0 EGP 375.00 EGP

375.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: ARDUINO.MINI.PRO

MADE IN CHINA

The Arduino Mini is a small microcontroller board originally based on the ATmega168, but now supplied with the ATmega328, intended for use on breadboards and when space is at a premium. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, and a 16 MHz crystal oscillator. It can be programmed with the Mini USB adapter or other USB or RS232 to TTL serial adapter (available at our store).

Features:

  • ATmega328 running at 16MHz with external resonator (0.5% tolerance)
  • 0.8mm Thin PCB
  • USB connection off-board
  • Supports auto-reset
  • 5V regulator
  • Max 150mA output
  • Over-current protected
  • Weight less than 2 grams!
  • DC input 5V up to 12V
  • Onboard Power and Status LEDs
  • Analog Pins: 8
  • Digital I/Os: 14
