RAM Electronics is an Authorized Distributor in Egypt for all Hi-Link Products.
Basic Description

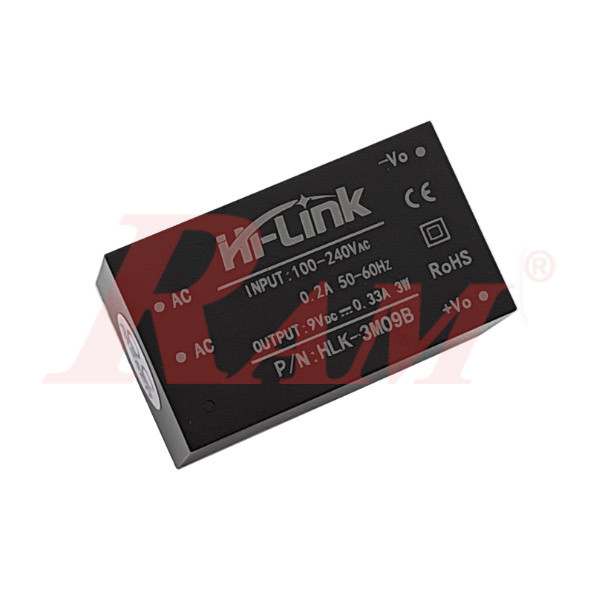

- Manufacturer: Hi-Link
- Model: HLK-3M09B
- Power rating: 3 W
- Output voltage: 9 V DC
Electrical Characteristics
- Input voltage (rated): 100-240 VAC
- Input voltage range: 85-265 VAC (or ~120-350 VDC)
- No-load power consumption: < 0.1 W
- Maximum input current: ≤ 0.2 A
- Inrush current: ≤ 10 A (cold start)
Output / Performance
- Rated output voltage: 9.0 V DC
- Maximum load current: 330 mA (3 W / 9 V)
- Voltage regulation: ±0.1-0.2 V typical
- Ripple / Noise: ≤ ~50 mVp-p (with proper filtering)
Isolation, Safety & Environmental
- Isolation voltage (input-to-output): 3000 VAC
- Operating temperature: −25 ℃ to +60 ℃
- Storage temperature: −40 ℃ to +80 ℃
- Humidity: 5-95% RH (non-condensing)
- Certifications / Compliance: CE, RoHS
Mechanical / Other
- Package / Mounting: Through-hole PCB mount
- Size (approx.): 34.8 × 20.5 mm
- Construction: Encapsulated module, flame-retardant materials
