RAM Electronics is an Authorized Distributor in Egypt for all Hi-Link Products.
Basic Description

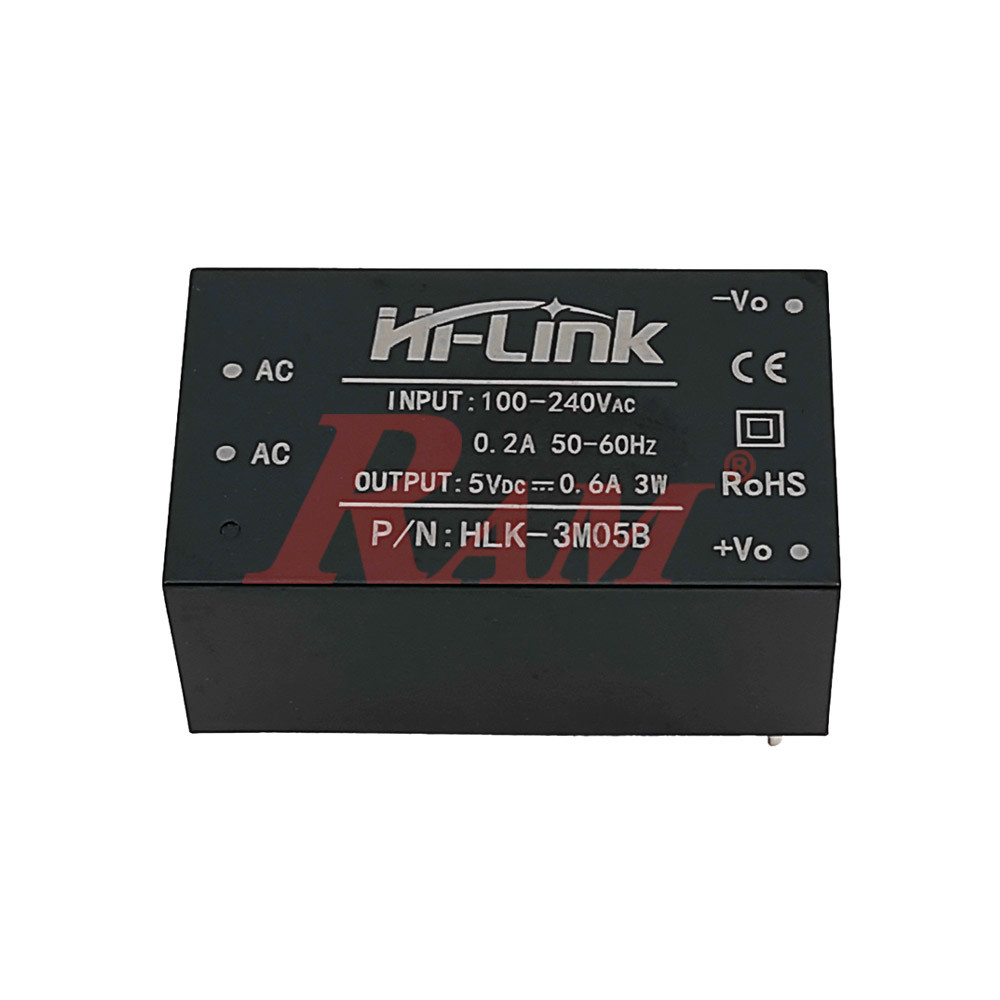

- Model: HLK-3M05B
- Output Voltage: 5 V DC
- Power Rating: 3 W
Electrical Characteristics
- Input Voltage Range: ~ 85-265 VAC (also ~120-350 VDC)
- Maximum Input Current: ≤ 0.2 A
- Inrush Current: ≤ 10 A (cold)
- No-load Power Consumption: < 0.1 W
Output / Performance
- Output Current (rated): 600 mA (since 5 V × 0.6 A = 3 W)
- Output Voltage Regulation (full load): ~ 5.0 ± 0.2 V
- Load Regulation: ± ~0.5%
- Ripple & Noise: ≤ ~50 mV peak-to-peak
Isolation, Safety & Environmental
- Isolation voltage (input to output): ~ 3000 VAC
- Operating Temperature: −25 °C to +60 °C
- Storage Temperature: −40 °C to +80 °C
- Relative Humidity: 5-95% RH, non-condensing
Mechanical / Other

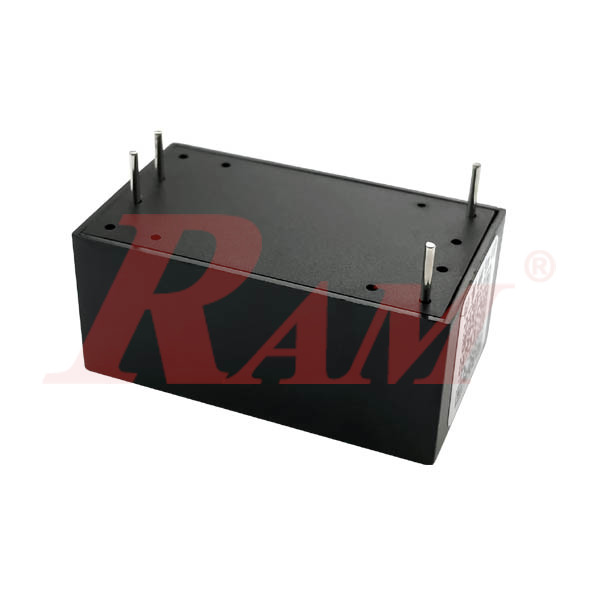

- Package / Mounting: Through-hole PCB mount

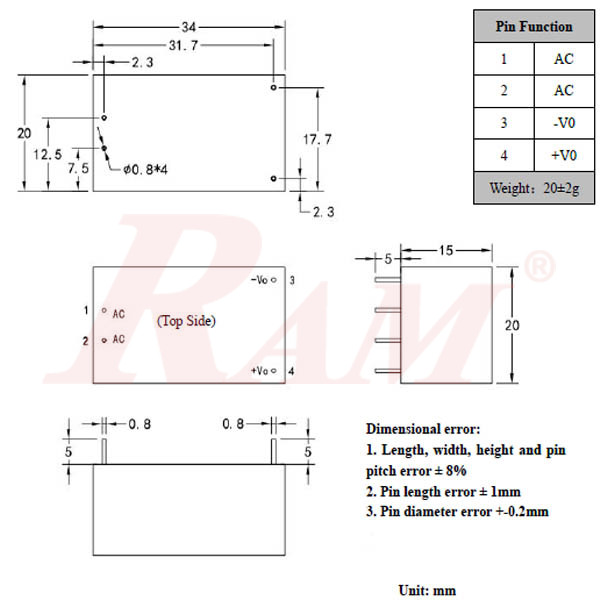

- Size / Footprint: ~ 34.8 × 20.5 mm
