RAM Electronics is an Authorized Distributor in Egypt for all Hi-Link Products.

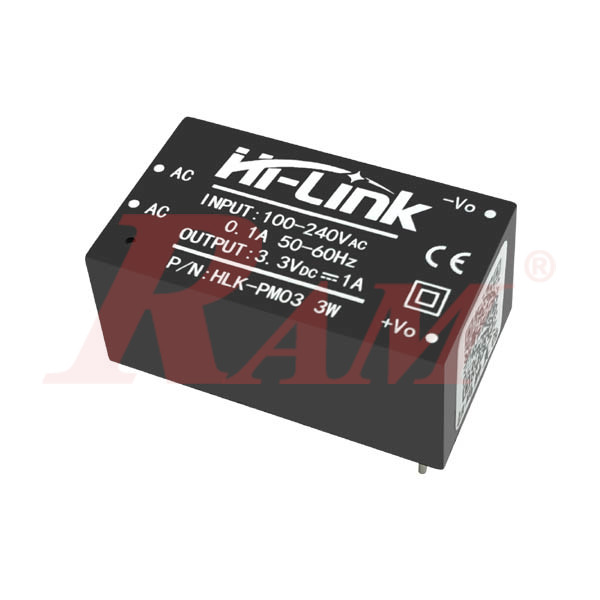

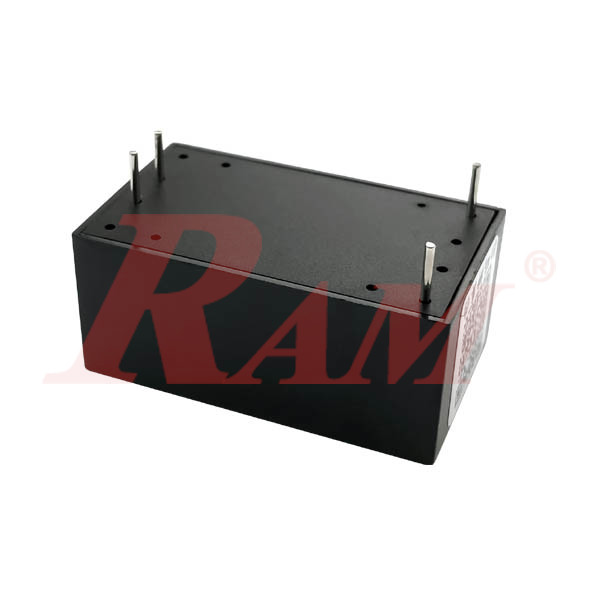

3W Ultra-small series power module HLK-PM03 is an ultra-compact power module. It is designed to meet the requirements of EMC and Safety Test. It can be used in IOT projects, Smart homes, and so on.
Features:
- Output Voltage: 3.3Vdc/0.9A (3W)
-
The maximum output current for a long time ≥600mA
- Meet UL, CE requirements

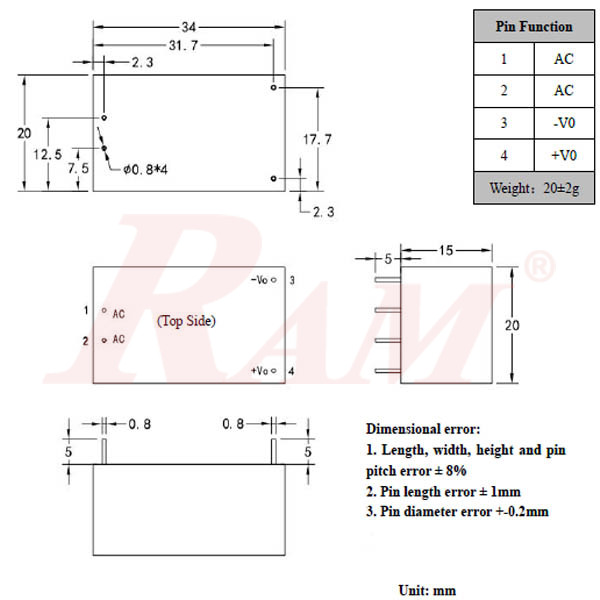

- Ultra-thin, ultra-small (Size: 34 x 20 x 15 mm)
- All voltage input (AC: 100 ~ 240V)
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- Low power consumption, environmental protection, no-load loss <0.1W
- Short-term maximum output current ≥1000 mA
