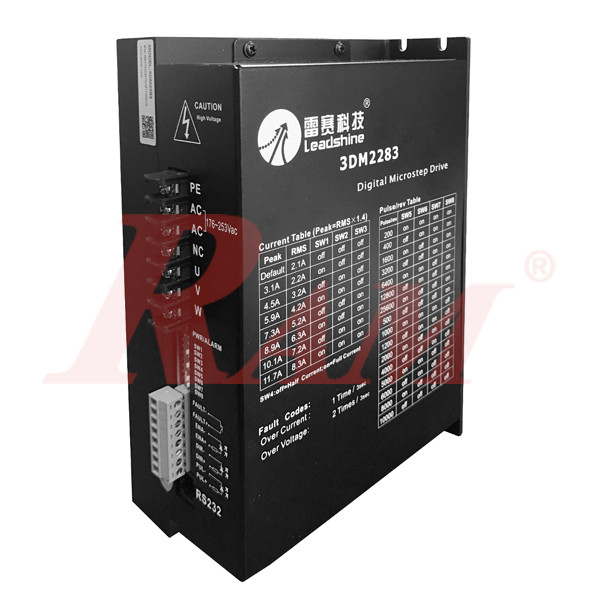

Leadshine® 3DM2283 - 3 Phase Digital Stepper Driver
Input 176~253 Vac, Max Output Current 11.7A
Internal Reference:
3DM2283
Original Leadshine Products
Features
- Step & direction or CW/CCW control
- Anti resonance
- Automatic motor identification and self-configuration
- Extra low noise
- Extra smooth movement Low drive & motor heating
- Maximum frequency: 200KHz
- Input voltage: 176 - 253 VAC
- Output current: 7 selections of 2.1 - 11.7A via DIP switches; or any value of 0.5 - 11.7A via software configuration
- Micro steps: 16 selections of full - 128 steps via DIP switches; or full - 512 steps via software configuration
- The automatic idle current reduction
