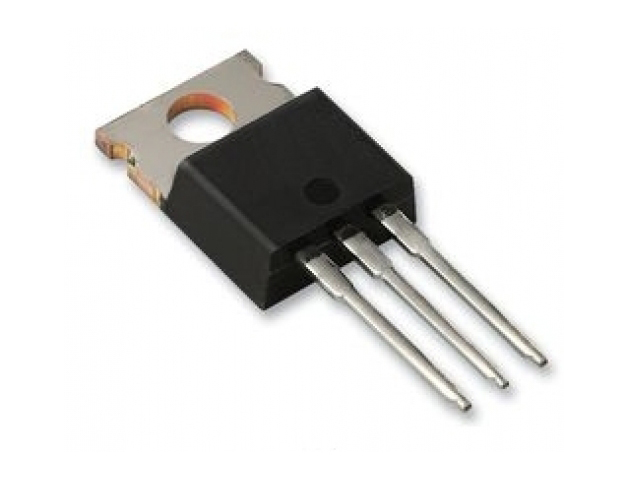

20N60C3 "45A, 600V, UFS Series N-Channel IGBT"

45A, 600V, UFS Series N-Channel IGBT in TO-263AB Package.

This family of MOS gated high-voltage switching devices combines the best features of MOSFETs and bipolar transistors. These devices have the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor.

The much lower on-state voltage drop varies only moderately between 25oC and 150oC. The IGBT is ideal for many high-voltage switching applications operating at moderate frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors.

Features

• 45A, 600V, TC = 25oC
• 600V Switching SOA Capability
• Typical Fall Time 108ns at TJ = 150oC
• Short Circuit Rating
• Low Conduction Loss
