Hiwonder LSC-16 — 16-Channel Digital Servo Controller
The Hiwonder LSC-16 is a compact and intelligent 16-channel digital servo controller designed for robotics and automation projects. It enables precise control of up to 16 servos simultaneously, supports serial communication with microcontrollers, and offers offline running modes.
Key Features:
- Controls up to 16 servos at the same time with adjustable speed and precision using a high-performance STM32 ARM Cortex-M3 microcontroller.
- Supports TTL serial communication with external microcontrollers (Arduino, STM32, Raspberry Pi, Jetson, etc.) for intelligent robot control.

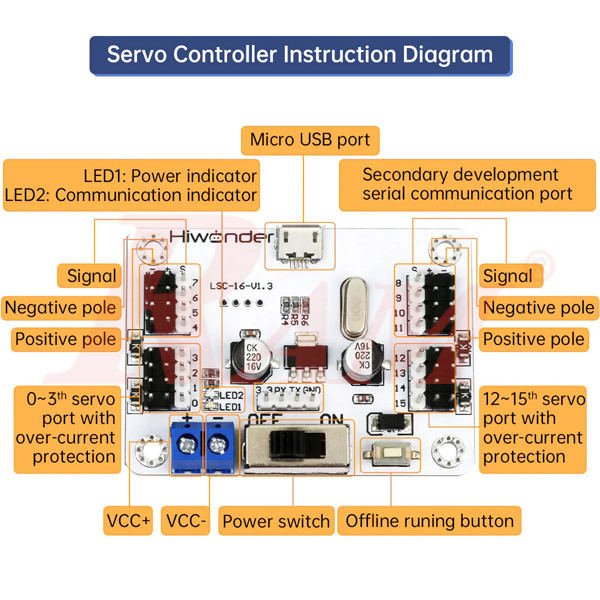

- Over-current protection for servo ports to prevent servo damage.
- Signal isolation protection separates servo outputs from the controller CPU for safety.
- Large onboard memory (16M) capable of storing up to 230 action groups, with each group holding up to 510 actions.
- Two offline operating modes: run once or loop continuously without an external controller.

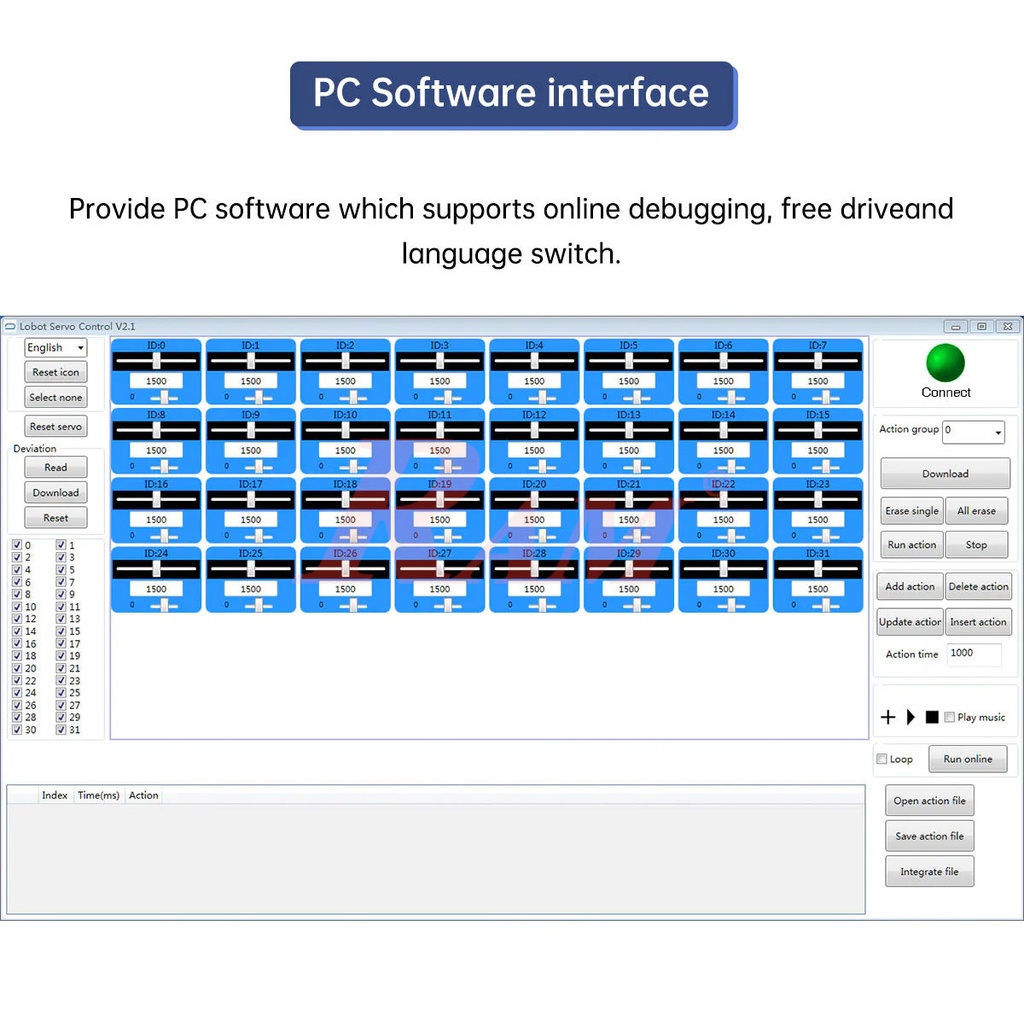

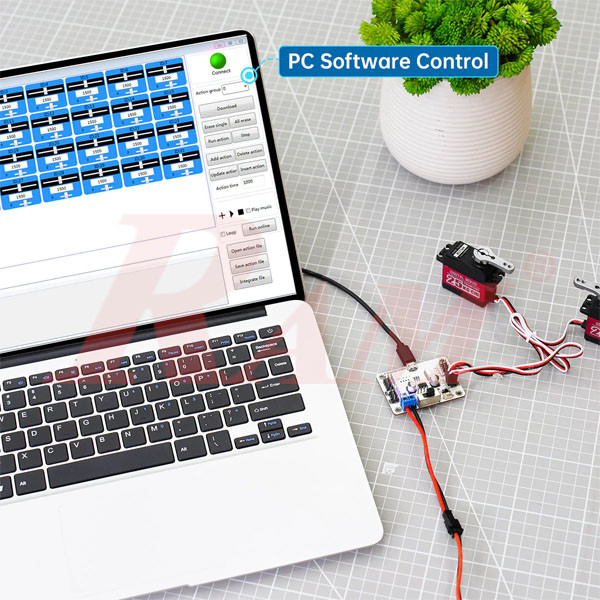

- Online debugging supported via PC software without installing drivers.

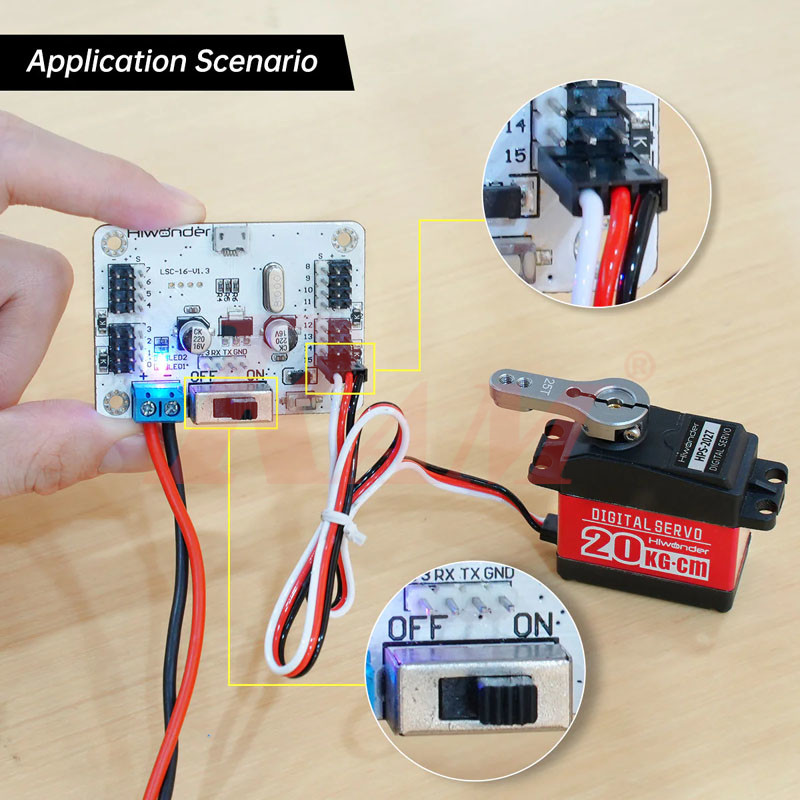

- Built-in power switch and simple wiring with positive/negative power terminals.
Technical Specifications:
- Channels: 16 servos
- Controller Chip: STM32 ARM Cortex-M3
- Memory: 16M storage
- Communication: TTL serial, baud rate 9600
- Protection: Over-current protection and signal isolation
- Dimensions: ~58 × 42 mm
- Weight: ~18 g
- USB Support: Yes, for PC debugging
Typical Uses:
- Multi-leg walking robots (hexapods, quadrupeds)
- Robotic arms and animatronics
- Precision motion control projects
- Educational and research robotics applications
