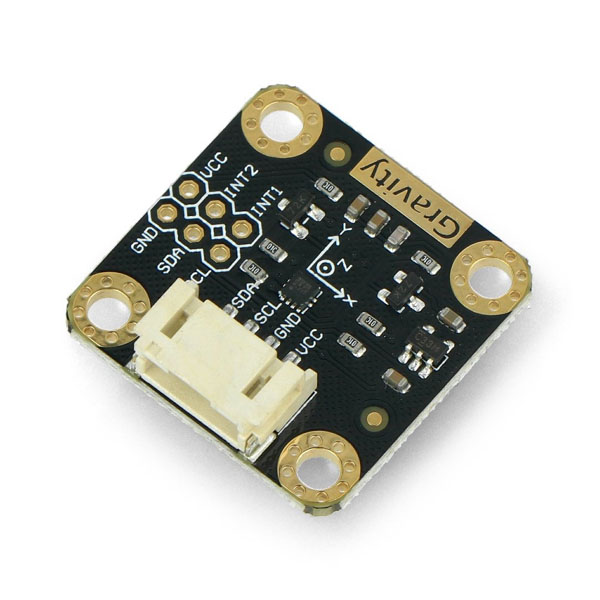

Gravity I2C Triple Axis Accelerometer – LIS2DH (±16g)
Product Description
The Gravity I2C Triple Axis Accelerometer – LIS2DH is an ultra-low-power 3-axis linear accelerometer module based on the LIS2DH MEMS sensor. It provides accurate acceleration measurement across X, Y, and Z axes with selectable measurement ranges up to ±16g. The module uses the I2C interface for easy plug-and-play integration with microcontrollers such as Arduino, ESP32, Raspberry Pi, and more.
Key Features
- Gravity plug-and-play I2C interface — no soldering required.
- Wide operating voltage: 3.3V – 5V (with onboard level conversion).
- Ultra-low power consumption: as low as 2 µA in low-power mode.
- Adjustable sensitivity: ±2g / ±4g / ±8g / ±16g.
- 16-bit digital output for precise acceleration data.
- High response rate up to ~5.3 kHz.
- Embedded temperature sensor and FIFO buffer.
- 2 independent interrupt generators for motion and free-fall detection.
- 6D/4D orientation detection supported.
- High impact resistance (~1,000,000 g).
Specifications
Specification | Details |
|---|---|
| Sensor Chip | LIS2DH MEMS accelerometer |
| Operating Voltage | 3.3V – 5V DC (Gravity interface) |
| Operating Current | 2 µA (low-power mode) / 11 µA (normal mode) |
| Interface | I2C (compatible with 3.3V and 5V logic) |
| Adjustable Scale | ±2g / ±4g / ±8g / ±16g |
| Output Resolution | 16-bit |
| Output Frequency | 1 Hz – 5.3 kHz |
| Interrupts | 2 independent programmable interrupt generators |
| Orientation Detection | 6D/4D orientation |
| Embedded Functions | Temperature sensor, FIFO buffer |
| Operating Temp. Range | –40 °C to +85 °C |
| Module Size | ~26.2 × 26.2 mm (1.03 × 1.03″) |
| Weight | ~12 g |
Typical Applications
- Motion-activated systems
- Display orientation sensing
- Shake and gesture control
- Pedometer and activity monitoring
- Gaming and VR input detection
- Impact recognition and logging
Package Includes
- Gravity: I2C Triple Axis Accelerometer – LIS2DH ×1
- Gravity-4 pin cable ×1
