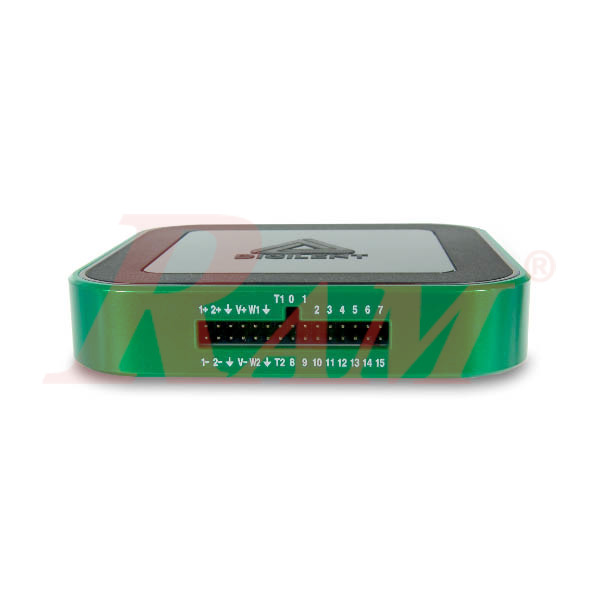

Analog Discovery 3 - DIGILENT
125 MS/s USB Oscilloscope, Waveform Generator, Logic Analyzer, and Variable Power Supply
Internal Reference:
ANALOG.DISCOVERY.3
Description
Discover More with the New Analog Discovery 3

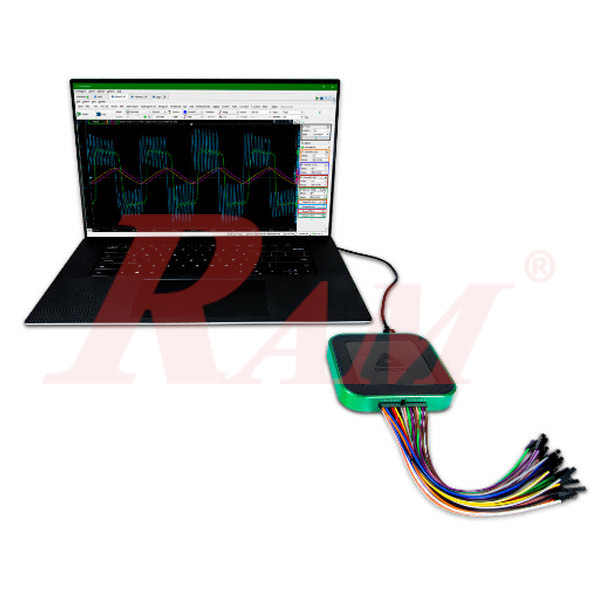

Digilent’s latest multi-function test and measurement device, also known as the AD3, is a digital oscilloscope, logic analyzer, waveform generator, pattern generator, and much more. Using the flexible WaveForms software (supported by Windows, Mac, and Linux), the Analog Discovery 3 can be used in the lab, in the field, or even at home - you're no longer tied down to a traditional benchtop and stacks of expensive test instruments.
Portability

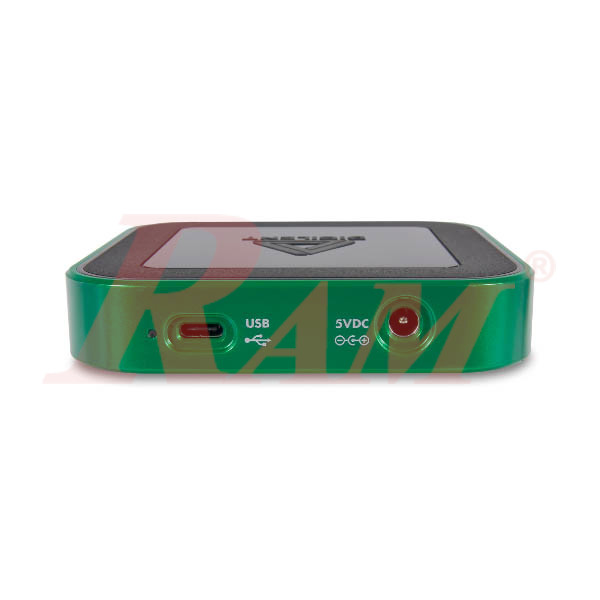

Like its predecessor, the Analog Discovery 3 is a portable USB-powered test and measurement device, though it now features an upgraded USB-C® connection. It’s lightweight and small enough to fit in your pocket or backpack, so it becomes an exceptional companion for any engineer.
Expanded WaveForms Features
The Analog Discovery 3 boasts a larger-than-ever buffer size, allowing more data to be sent through the waveform generator and received through the mixed signal (analog and digital) oscilloscope. It also has an increased sampling rate of up to 125 MS/s on all channels and a more potent power supply (up to 800 mA). The larger buffers allow you to capture longer records at high resolution and enable more complex AWG signals. Modulated AWG signals also take advantage of larger buffers, and more complex modulated signals have been added including phase modulation and summation.
This iteration of our most popular Analog Discovery digital oscilloscope also allows engineers access to new powerful features in WaveForms like the FIR (finite impulse response) Filter. Through the use of optional FIR filters on Oscilloscope input channels, users can reduce the amount of high-frequency noise that could affect the quality of their measurements. Digital loopback of captured signals to the AWG, both filtered and unfiltered, is now supported. AWG output signals can now also be recaptured through digital loopback and displayed alongside signals returned from a circuit under test.
The AD3 is built on the next-generation Xilinx FPGA, opening up even more features and future enhancements over time with software updates.
Features
Oscilloscope:
- Two differential channels with 14-bit resolution at up to 125 MS/s per channel with a +/-25 V input range, 30+ MHz bandwidth with BNC Adapter
- User-configurable hardware input filters
- FFT, Spectrogram, Lock-In Amplifier, Additional Software Input Filters, Eye Diagram, XY Plot views, and more, in the WaveForms application
Arbitrary Waveform Generator:
- Two channels with 14-bit resolution at up to 125 MS/s per channel with a +/-5 V output range, 12 MHz bandwidth with BNC Adapter
- Standard waveforms, amplitude and frequency modulated signals, direct playback from analog inputs, custom waveforms, and more
Logic Analyzer and Pattern Generator:
- 16 digital I/O channels at up to 125 MS/s per channel
- Individually-configurable 3.3 V digital inputs and outputs, 5 V tolerant inputs
- SPI, I2C, UART, CAN, JTAG, ROM logic, custom protocols, and more
Programmable Power Supplies:
- 0.5 V to 5 V and -0.5 V to -5 V variable power supplies
- Up to 800 mA per channel when used with an auxiliary power source
Additional Features:
- Additional software instruments include:
- Spectrum Analyzer, Network Analyzer, and Impedance Analyzer
- Protocol Analyzer, virtual digital I/O such as buttons, switches, LEDs
- Data logging, Voltmeter, in-app scripting
- SDK for hardware control in C, C++, Python, and other languages
- Support for LabVIEW and MATLAB
- And much more
Product Compliance:
- HTC: 8471809000
- ECCN: 3A992.a
*Note: To achieve maximum bandwidth, use of the BNC Adapter for Analog Discovery is required.
What's Included:
- Analog Discovery 3
- One plastic project box
- One USB-C® to USB-C programming cable
- One 2x15 flywire signal cable assembly
- 5-pack of 6-pin male headers
- 30-pin flywire labels
