AC-DC Module 5W 220Vac to 5Vdc (HLK-5M05B)

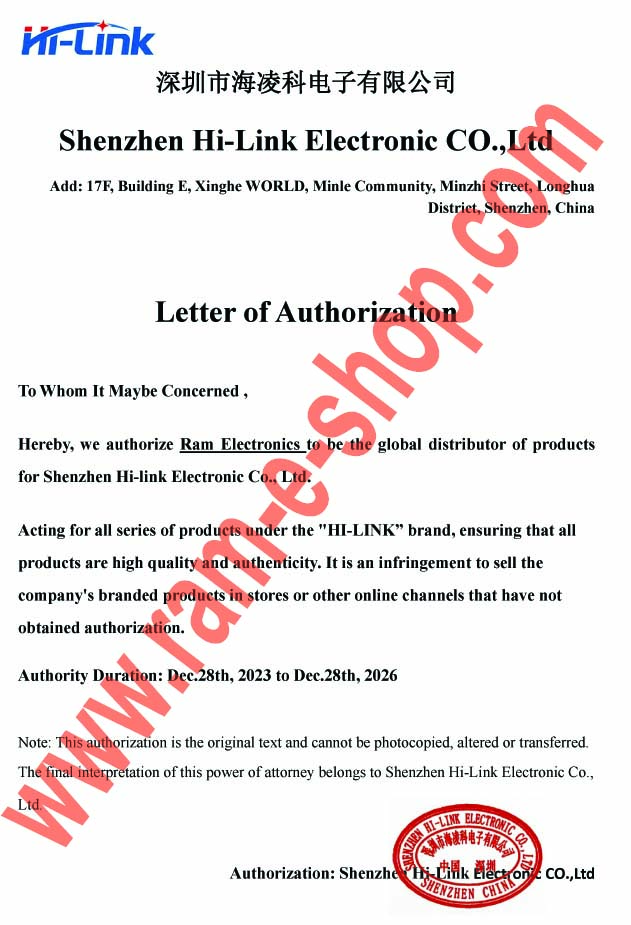

RAM Electronics is an Authorized Distributor in Egypt for all Hi-Link Products.

Basic Description

• Model: HLK-5M05B
• Type: AC-DC Power Module
• Rated Power: 5 W
• Output Voltage: 5 V DC

Electrical Characteristics

• Input voltage (rated): 100-240 VAC
• Input voltage range: 85-265 VAC or 120-350 VDC
• Maximum input current: ≤ 0.2 A
• Inrush current (cold start): ≤ 10 A
• No-load power consumption: < 0.1 W

Output / Performance

• Rated output current: 1.0 A
• Short-term maximum output current: ≥ 1.2 A
• Output voltage (no-load): 5.0 ± 0.1 V
• Output voltage (full-load): 5.0 ± 0.2 V
• Voltage regulation (load): ± 0.2 %
• Load regulation rate: ± 0.5 %
• Ripple and noise: ≤ 100 mVp-p (typical ~50 mVp-p)

Isolation, Safety & Environmental

• Isolation voltage (input to output): 3000 VAC
• Operating temperature: −25 °C to +60 °C
• Storage temperature: −40 °C to +80 °C
• Relative humidity: 5-95 % RH, non-condensing

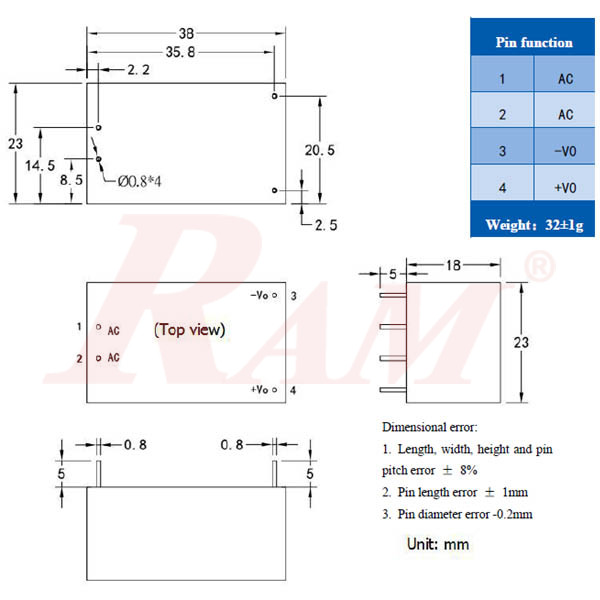

Mechanical / Other

• Package / Mounting: Through-hole PCB mount
• Size: 38 × 23 × 18 mm
• Weight: ~30 g
• MTBF (mean time between failures): ≥ 100,000 h

Download

• DATASHEET
