LMT101ENMFWD-ACD TFT LCD Module – 10.1" HDMI Display with Capacitive Touch - TOPWAY

LMT101ENMFWD-ACD TFT LCD Module – 10.1 Inch HDMI Display with Capacitive Touch

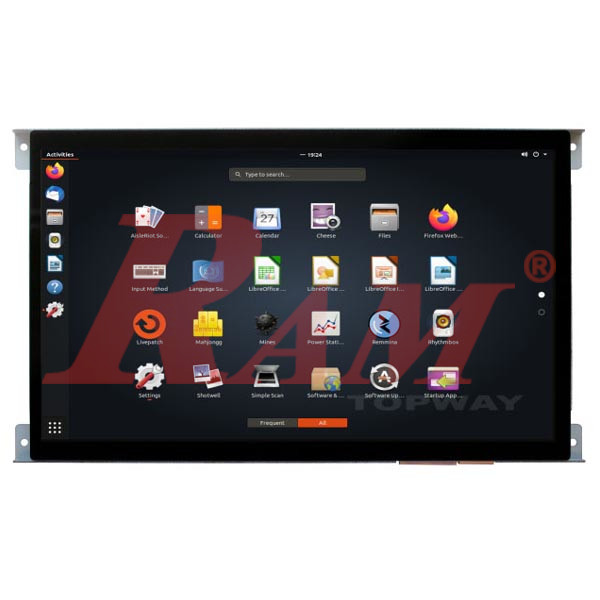

The LMT101ENMFWD-ACD is a 10.1-inch TFT LCD module designed for HDMI video input applications.

10.1 inch tft lcd monitor with HDMI interface, easy connection with PC, Raspberry Pi and Arduino.

It integrates a capacitive touch panel and supports wide input voltage (11–26 V), making it ideal for industrial displays, embedded systems, kiosks, control panels, and monitoring equipment.

Key Features

• 10.1-inch TFT LCD display
• HDMI video input
• Capacitive Touch Panel (USB interface)
• Wide input voltage range 11–26 V
• High resolution 1024 × 600
• LED backlight with 30,000 h lifetime
• Industrial-grade temperature range
• Compact and robust design

Display Specifications

• Display Size: 10.1 inch (diagonal)
• Resolution: 1024 × 600 pixels
• Color Depth: 16.7M colors (24-bit)
• Pixel Configuration: RGB Stripe
• Pixel Pitch: 0.2175 × 0.2088 mm
• Display Mode: Transmissive / Normal White
• Viewing Direction:
  • 6 o’clock (gray-scale inverse)
  • 12 o’clock (color scale)
• Active Area: 222.72 × 125.28 mm
• Outline Dimensions: 251.0 × 145.0 × 20.7 mm
• Backlight: White LED

Optical Characteristics

• Viewing Angle (CR ≥ 10):
  • Left / Right: 80° (typ.)
  • Up: 75° (typ.)
  • Down: 80° (typ.)
• Contrast Ratio: 500:1 (typ.)
• Response Time:
  • Rise (Tr): 9 ms (typ.)
  • Fall (Tf): 7 ms (typ.)
• Luminance: 300 cd/m² (typ.)
• Luminance Uniformity: 80% (typ.)

Touch Panel

• Touch Type: Capacitive Touch Panel (CTP)
• Interface: USB (D+ / D-)
• Touch Supply Voltage: 5.0 V (4.5 – 5.5 V)
• Operating Current: 26 mA (typ.)

Electrical Specifications

LCD Panel

• Operating Voltage:
  • Typical: 12 V
  • Range: 11 – 26 V
• Power Consumption:
  • Typical: 350 mA
• Backlight Lifetime:
  • 30,000 hours (brightness to 50%)

Touch Panel

• Supply Voltage: 5.0 V
• Current Consumption: 26 mA (typ.)

Interfaces & Connectivity

Power Input (K1)

• Dual VDD / GND pins
• Supports 11–26 V DC input

HDMI Interface (K2)

• Standard HDMI Type-A
• Hot-plug not supported (connect before power-on)

Touch Panel Interface (K3)

• USB interface for capacitive touch controller
• 5.0 V power supply

Environmental Conditions

• Operating Temperature: −20°C to +70°C
• Storage Temperature: −30°C to +80°C
• Operating Humidity: 10% – 90% RH (non-condensing)

Typical Applications

• Industrial HMI displays
• Embedded Linux / Windows systems
• Control panels & kiosks
• Measurement & monitoring systems
• Smart terminals

Download

• Datasheet
